Quality & Precision Inspection

Metrixnano reviews manufacturing and inspection requirements for ultra-precision components, optical lenses and optical mold bases. A useful specification connects each critical feature to a measurement method and an acceptance criterion. Share these requirements with your drawing so that feasibility, quotation and inspection can be considered together.

Define what needs to be measured

• Dimensions and geometry: identify critical sizes, datums, fits, concentricity and other drawing tolerances.
• Optical form: provide the nominal surface or optical prescription, clear aperture and the required form-error definition, such as PV or RMS.
• Surface texture: specify the roughness parameter, evaluation area or length and the relevant filtering conditions. Ra, Sa and optical form error describe different characteristics.
• Visual and functional requirements: state requirements for edges, defects, assembly and cleanliness where relevant.

Inspection planned around your part

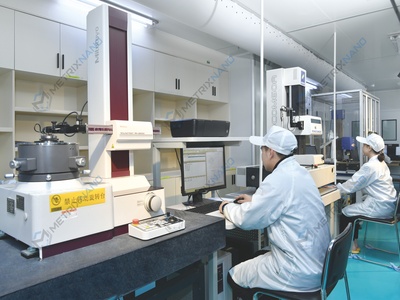

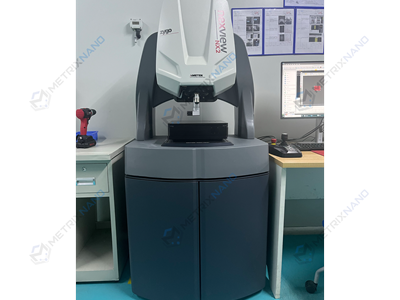

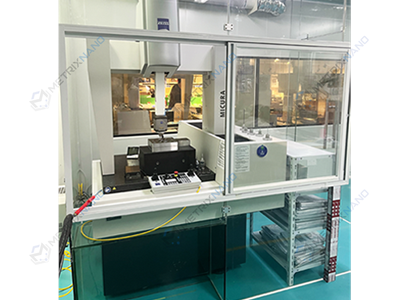

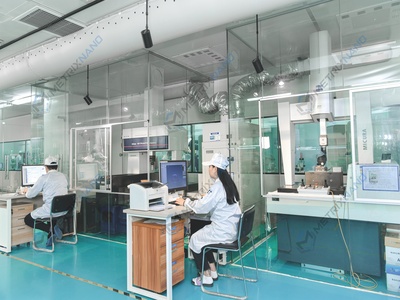

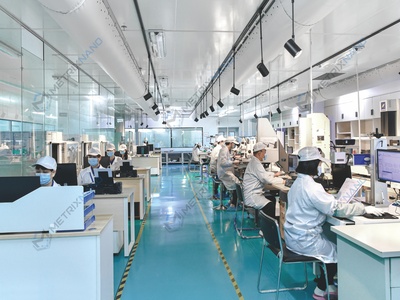

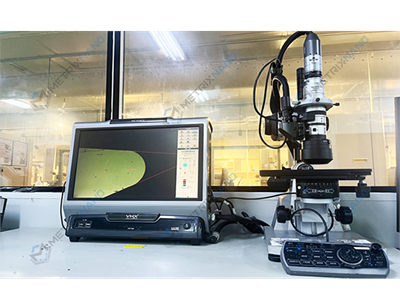

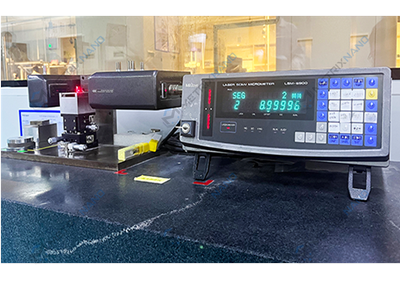

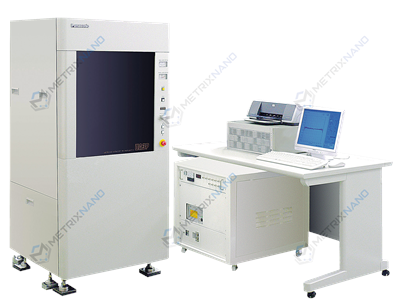

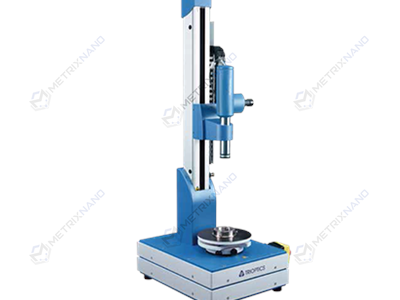

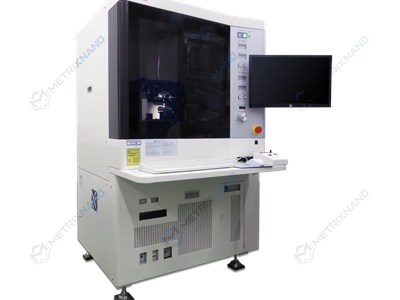

The equipment shown below includes UA3P, ZEISS, ZYGO and other inspection systems. The measurement approach depends on geometry, material, access to the feature and the requested acceptance criteria. Discuss the applicable instrument and report format before ordering; equipment availability alone does not establish a tolerance for every part.

Precision can reach 0.5 μm on suitable features, subject to drawing review and an agreed measurement method. This figure is not a universal surface-roughness, optical-form or whole-part guarantee.

Agree documentation before production

Tell us whether you need dimensional results, optical surface data, material documentation or a specific customer report template. The scope, sampling, traceability and delivery of documentation should be agreed in the quotation. If supplier approval requires certification, request the current certificate and its scope for your review.

Typical manufacturing lead time is approximately one week and is adjusted for complexity, material, quantity, finishing and inspection requirements.
